KEGG   COMPOUND: C01937Help
Entry
C01937                      Compound

Name
Methotrexate
Formula
C20H22N8O5
Exact mass
454.1713
Mol weight
454.4393

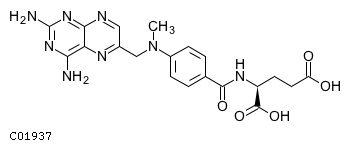

Structure
Mol fileKCF fileDB searchJmolKegDraw
Remark
Same as:
Pathway
Bile secretion
Brite
Carcinogens [BR:br08008]
 Group 3: Not classifiable as to its carcinogenicity to humans
  Compounds
   C01937  Methotrexate
BRITE hierarchy
Other DBs
CAS:
59-05-2
PubChem:
ChEBI:
NIKKAJI:
KCF data Show

ATOM        33
            1   C8y C    23.0300  -14.3500
            2   N5x N    23.0300  -15.7500
            3   C8y C    24.2900  -16.4500
            4   C8y C    25.4800  -15.7500
            5   C8y C    25.4800  -14.3500
            6   N5x N    24.2900  -13.6500
            7   N5x N    26.7400  -16.4500
            8   C8y C    27.9300  -15.7500
            9   C8x C    27.9300  -14.3500
            10  N5x N    26.7400  -13.6500
            11  N1a N    21.8400  -13.6500
            12  N1a N    24.2900  -17.8500
            13  C1b C    29.1200  -16.4500
            14  N1c N    30.3100  -15.7500
            15  C8y C    31.5000  -16.4500
            16  C1a C    30.3100  -14.3500
            17  C8x C    31.5000  -17.8500
            18  C8x C    32.7600  -18.5500
            19  C8y C    33.9500  -17.8500
            20  C8x C    33.9500  -16.4500
            21  C8x C    32.7600  -15.7500
            22  C5a C    35.1400  -18.5500
            23  N1b N    36.4000  -17.8500
            24  O5a O    35.1400  -19.9500
            25  C1c C    37.5900  -18.5500
            26  C1b C    38.7800  -17.8500
            27  C1b C    39.9700  -18.5500
            28  C6a C    41.1600  -17.8500
            29  O6a O    42.3500  -18.5500
            30  C6a C    37.5900  -19.9500
            31  O6a O    38.7800  -20.6500
            32  O6a O    36.3300  -20.6500
            33  O6a O    41.1600  -16.4500
BOND        35
            1     1   2 2
            2     2   3 1
            3     3   4 2
            4     4   5 1
            5     5   6 2
            6     1   6 1
            7     4   7 1
            8     7   8 2
            9     8   9 1
            10    9  10 2
            11    5  10 1
            12    1  11 1
            13    3  12 1
            14    8  13 1
            15   13  14 1
            16   14  15 1
            17   14  16 1
            18   15  17 2
            19   17  18 1
            20   18  19 2
            21   19  20 1
            22   20  21 2
            23   15  21 1
            24   19  22 1
            25   22  23 1
            26   22  24 2
            27   23  25 1
            28   25  26 1
            29   26  27 1
            30   27  28 1
            31   28  29 1
            32   25  30 1 #Up
            33   30  31 1
            34   30  32 2
            35   28  33 2
