Entry
G10694                      Glycan

Composition
(GlcNAc)2 (Man)8 (Asn)1
Mass
1703.5 (Asn)

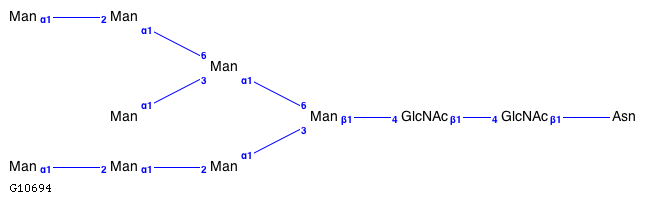

Structure
KCF fileKCaMSNFG
Reaction
Pathway
map00513  Various types of N-glycan biosynthesis
map01100  Metabolic pathways
map04141  Protein processing in endoplasmic reticulum
Module
M00074  N-glycan biosynthesis, high-mannose type
Enzyme
2.4.1.232       3.2.1.113
Orthology
K01230  mannosyl-oligosaccharide alpha-1,2-mannosidase [EC:3.2.1.113]
K05528  alpha 1,6-mannosyltransferase [EC:2.4.1.232]
Other DBs
KCF data Show

NODE        11
            1   Asn        30    -2
            2   GlcNAc     20    -2
            3   GlcNAc     10    -2
            4   Man         0    -2
            5   Man       -10     3
            6   Man       -10    -7
            7   Man       -20     8
            8   Man       -20    -2
            9   Man       -20    -7
            10  Man       -30     8
            11  Man       -30    -7
EDGE        10
            1     2:b1    1
            2     3:b1    2:4
            3     4:b1    3:4
            4     5:a1    4:6
            5     6:a1    4:3
            6     7:a1    5:6
            7     8:a1    5:3
            8     9:a1    6:2
            9    10:a1    7:2
            10   11:a1    9:2
