KEGG   COMPOUND: C18092
Entry
C18092                      Compound
Name
dTDP-L-ristosamine;
dTDP-3-amino-2,3,6-trideoxy-L-allose;
dTDP-3-amino-2,3,6-trideoxy-L-ribo-hexose
Formula
C16H27N3O13P2
Exact mass
531.1019
Mol weight
531.3454

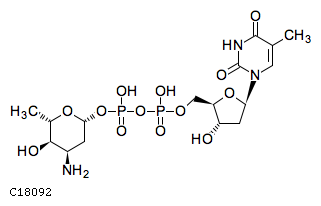

Structure
Reaction
R11122 R11139
Pathway
map00404  Staurosporine biosynthesis
map01110  Biosynthesis of secondary metabolites
map01250  Biosynthesis of nucleotide sugars
Enzyme
2.1.1.-         2.4.-.-         2.6.1.-
Other DBs
PubChem: 96024309
ChEBI: 81495
NIKKAJI: J2.783.601A
KCF data

ATOM        34
            1   C1y C    43.2481  -23.5319
            2   N4y N    43.9753  -21.4829
            3   O2x O    42.1286  -22.7287
            4   C1x C    42.8242  -24.8474
            5   C8y C    42.7863  -20.7808
            6   C8x C    45.1832  -20.7808
            7   C1y C    41.0219  -23.5319
            8   C1y C    41.4394  -24.8474
            9   N4x N    42.7863  -19.3895
            10  O5x O    41.5910  -21.4638
            11  C8y C    45.1832  -19.3895
            12  C1b C    39.7128  -23.1018
            13  O1a O    40.6234  -25.9541
            14  C8y C    43.9753  -18.7002
            15  C1a C    46.3722  -18.7002
            16  O2b O    38.6883  -24.0126
            17  O5x O    43.9690  -17.3280
            18  P1b P    37.3095  -24.0126
            19  O2c O    35.9372  -24.0126
            20  O1c O    37.3159  -22.6339
            21  O1c O    37.3095  -25.3850
            22  P1b P    34.5584  -24.0126
            23  O2b O    33.1924  -24.0188
            24  O1c O    34.5584  -22.6339
            25  O1c O    34.5584  -25.3850
            26  C1y C    32.0034  -24.7082
            27  O2x O    30.8019  -24.0252
            28  C1x C    32.0034  -26.0806
            29  C1y C    29.6065  -24.7082
            30  C1y C    30.8019  -26.7763
            31  C1y C    29.6065  -26.0806
            32  C1a C    28.4177  -24.0188
            33  N1a N    30.8019  -28.1487
            34  O1a O    28.4303  -26.7763
BOND        36
            1     1   2 1 #Up
            2     1   3 1
            3     1   4 1
            4     2   5 1
            5     2   6 1
            6     3   7 1
            7     4   8 1
            8     5   9 1
            9     5  10 2
            10    6  11 2
            11    7  12 1 #Up
            12    8  13 1 #Down
            13    9  14 1
            14   11  15 1
            15   12  16 1
            16   14  17 2
            17   16  18 1
            18   18  19 1
            19   18  20 1
            20   18  21 2
            21   19  22 1
            22   22  23 1
            23   22  24 1
            24   22  25 2
            25   26  23 1 #Down
            26   26  27 1
            27   26  28 1
            28   27  29 1
            29   28  30 1
            30   29  31 1
            31   29  32 1 #Down
            32   30  33 1 #Up
            33   31  34 1 #Up
            34    7   8 1
            35   11  14 1
            36   30  31 1
