 | | COMPOUND: C20415 | |
| Entry |
|
|---|
| Name |
dTDP-4-acetamido-4,6-dideoxy-alpha-D-galactose;
dTDP-Fuc4NAc
|
|---|
| Formula |
C18H29N3O15P2
|
|---|
| Exact mass |
589.1074
|
|---|
| Mol weight |
589.3815
|
|---|

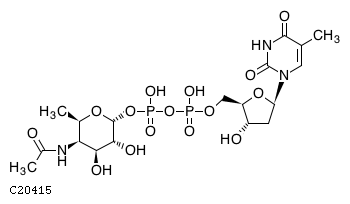

| Structure |
|
|---|
| Reaction |
|
|---|
| Pathway |
| map00541 | O-Antigen nucleotide sugar biosynthesis |
| map01250 | Biosynthesis of nucleotide sugars |
|
|---|
| Enzyme |
|
|---|
| Other DBs |
|
|---|
| KCF data |
ATOM 38
1 C1y C 24.4867 -16.9523
2 N4y N 25.2080 -14.9086
3 O2x O 23.3605 -16.1488
4 C1x C 24.0565 -18.2685
5 C8y C 24.0185 -14.1999
6 C8x C 26.4229 -14.1999
7 C1y C 22.2595 -16.9523
8 C1y C 22.6772 -18.2685
9 N4x N 24.0185 -12.8080
10 O5x O 22.8227 -14.8833
11 C8y C 26.4229 -12.8080
12 C1b C 20.9498 -16.5220
13 O1a O 21.8608 -19.3757
14 C8y C 25.2143 -12.1182
15 C1a C 27.6125 -12.1182
16 O2b O 19.9248 -17.4395
17 O5x O 25.2080 -10.7454
18 P1b P 18.5453 -17.4332
19 O2c O 17.1724 -17.4332
20 O1c O 18.5453 -16.0602
21 O1c O 18.5453 -18.8125
22 P1b P 15.7930 -17.4332
23 O2b O 14.4199 -17.4395
24 O1c O 15.7930 -16.0602
25 O1c O 15.7930 -18.8125
26 C1y C 13.2241 -18.1230
27 C1y C 13.2241 -19.5023
28 O2x O 12.0221 -17.4395
29 C1y C 12.0221 -20.1918
30 O1a O 14.4199 -20.1918
31 C1y C 10.8325 -18.1230
32 C1y C 10.8325 -19.5023
33 O1a O 12.0221 -21.5649
34 C1a C 9.6556 -17.4395
35 N1b N 9.6556 -20.1918
36 C5a C 8.2556 -20.1918
37 O5a O 7.5427 -18.9577
38 C1a C 7.5705 -21.3784
BOND 40
1 1 2 1 #Up
2 1 3 1
3 1 4 1
4 2 5 1
5 2 6 1
6 3 7 1
7 4 8 1
8 5 9 1
9 5 10 2
10 6 11 2
11 7 12 1 #Up
12 8 13 1 #Down
13 9 14 1
14 11 15 1
15 12 16 1
16 14 17 2
17 16 18 1
18 18 19 1
19 18 20 1
20 18 21 2
21 19 22 1
22 22 23 1
23 22 24 1
24 22 25 2
25 26 23 1 #Down
26 26 27 1
27 26 28 1
28 27 29 1
29 27 30 1 #Down
30 28 31 1
31 29 32 1
32 29 33 1 #Up
33 31 34 1 #Up
34 32 35 1 #Up
35 7 8 1
36 11 14 1
37 31 32 1
38 35 36 1
39 36 37 2
40 36 38 1
|
|---|
|
