KEGG   COMPOUND: C20885
Entry
C20885                      Compound

Name
N-Citryl-spermidine
Formula
C13H25N3O6
Exact mass
319.1743
Mol weight
319.3541

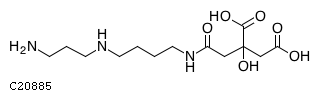

Structure
Reaction
Pathway
map01053  Biosynthesis of siderophore group nonribosomal peptides
Enzyme
6.3.2.-
Other DBs
PubChem: 405226293
KCF data

ATOM        22
            1   C1b C    10.6495  -17.2311
            2   C1b C    11.8545  -16.5222
            3   C1b C    13.1304  -17.2311
            4   N1b N    14.3355  -16.5222
            5   C1b C    15.5405  -17.2311
            6   C1b C    16.8164  -16.5222
            7   C1b C    18.0214  -17.2311
            8   C1b C    19.2264  -16.5222
            9   N1b N    20.5023  -17.2311
            10  C5a C    21.7073  -16.5222
            11  C1b C    22.9124  -17.2311
            12  C1d C    24.1883  -16.5222
            13  C1b C    25.3933  -17.2311
            14  C6a C    26.5983  -16.5222
            15  O6a O    27.8033  -17.2311
            16  N1a N     9.4445  -16.5222
            17  O5a O    21.7073  -15.2463
            18  O1a O    24.1883  -17.9399
            19  C6a C    24.1883  -15.1046
            20  O6a O    25.3933  -14.3957
            21  O6a O    22.9832  -14.3957
            22  O6a O    26.5983  -15.2463
BOND        21
            1     1   2 1
            2     2   3 1
            3     3   4 1
            4     4   5 1
            5     5   6 1
            6     6   7 1
            7     7   8 1
            8     8   9 1
            9     9  10 1
            10   10  11 1
            11   11  12 1
            12   12  13 1
            13   13  14 1
            14   14  15 1
            15    1  16 1
            16   10  17 2
            17   12  18 1
            18   12  19 1
            19   19  20 2
            20   19  21 1
            21   14  22 2
