KEGG   COMPOUND: C01352Help
Entry
C01352                      Compound

Name
FADH2
Formula
C27H35N9O15P2
Exact mass
787.1728
Mol weight
787.5656

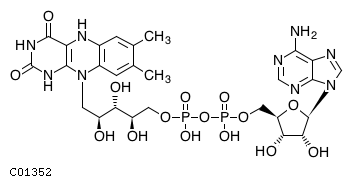

Structure
Mol fileKCF fileDB searchJmolKegDraw
Reaction
Pathway
Tryptophan metabolism
Riboflavin metabolism
Enzyme
1.1.5.3         1.1.5.4         1.1.98.3        1.1.99.2
1.1.99.3        1.1.99.13       1.1.99.21       1.3.3.6
1.3.8.1         1.3.8.2         1.3.8.4         1.3.8.6
1.3.8.7         1.3.8.8         1.3.8.9         1.3.99.1
1.3.99.-        1.5.1.30        1.5.1.37        1.5.1.45
1.5.99.3        1.5.-.-         1.6.6.9         1.8.99.2
1.14.14.7       1.14.14.8       1.14.14.-       1.14.99.3
1.17.99.5       2.1.1.74
Other DBs
PubChem:
ChEBI:
NIKKAJI:
KCF data Show

ATOM        53
            1   N4x N    11.8213  -13.4315
            2   C8y C    11.8213  -14.8306
            3   N4x N    13.0106  -15.5302
            4   C8y C    14.2698  -14.8306
            5   C8y C    14.2698  -13.4315
            6   C8y C    13.0106  -12.8018
            7   N1y N    15.3891  -15.5302
            8   C8y C    16.5784  -14.8306
            9   C8y C    16.5784  -13.4315
            10  N1x N    15.3891  -12.8018
            11  C8x C    17.7677  -15.5302
            12  C8y C    18.9570  -14.8306
            13  C8y C    18.9570  -13.4315
            14  C8x C    17.7677  -12.8018
            15  O5x O    13.0106  -11.4027
            16  O5x O    10.7019  -15.5302
            17  C1a C    20.0764  -12.8018
            18  C1a C    20.0764  -15.5302
            19  C1b C    15.3891  -17.7689
            20  C1c C    16.5784  -18.4685
            21  C1c C    17.6978  -17.7689
            22  C1c C    18.8871  -18.4685
            23  C1b C    20.0064  -17.7689
            24  O2b O    21.1957  -18.4685
            25  O1a O    16.5784  -19.7977
            26  O1a O    18.8871  -19.7977
            27  O1a O    17.6978  -16.3697
            28  P1b P    22.5949  -18.4685
            29  O2c O    23.9241  -18.4685
            30  O1c O    22.5949  -17.0693
            31  O1c O    22.5949  -19.7977
            32  P1b P    25.3233  -18.4685
            33  O2b O    26.6525  -18.4685
            34  O1c O    25.3233  -17.0693
            35  O1c O    25.3233  -19.7977
            36  C1y C    29.0311  -18.4685
            37  C1b C    27.9118  -17.7689
            38  C1y C    29.4509  -19.7277
            39  C1y C    30.7801  -19.7277
            40  C1y C    31.1998  -18.4685
            41  O2x O    30.1504  -17.6290
            42  O1a O    28.6113  -20.8471
            43  O1a O    31.5496  -20.9170
            44  N5x N    29.1011  -14.4808
            45  C8x C    29.1011  -15.8101
            46  N5x N    30.2904  -16.5096
            47  C8y C    31.4797  -15.8101
            48  C8y C    31.4797  -14.4808
            49  C8y C    30.2904  -13.7813
            50  N4y N    32.8089  -16.2298
            51  C8x C    33.5085  -15.1804
            52  N5x N    32.8089  -14.0611
            53  N1a N    30.2904  -12.4520
BOND        58
            1     1   2 1
            2     2   3 1
            3     3   4 1
            4     4   5 2
            5     5   6 1
            6     1   6 1
            7     4   7 1
            8     7   8 1
            9     8   9 2
            10    9  10 1
            11    5  10 1
            12    8  11 1
            13   11  12 2
            14   12  13 1
            15   13  14 2
            16    9  14 1
            17    6  15 2
            18    2  16 2
            19   13  17 1
            20   12  18 1
            21    7  19 1
            22   19  20 1
            23   20  21 1
            24   21  22 1
            25   22  23 1
            26   23  24 1
            27   20  25 1 #Up
            28   22  26 1 #Up
            29   21  27 1 #Down
            30   24  28 1
            31   28  29 1
            32   28  30 2
            33   28  31 1
            34   29  32 1
            35   32  33 1
            36   32  34 2
            37   32  35 1
            38   36  37 1 #Up
            39   33  37 1
            40   36  38 1
            41   38  39 1
            42   39  40 1
            43   40  41 1
            44   36  41 1
            45   38  42 1 #Down
            46   39  43 1 #Down
            47   44  45 2
            48   45  46 1
            49   46  47 2
            50   47  48 1
            51   48  49 2
            52   44  49 1
            53   47  50 1
            54   50  51 1
            55   51  52 2
            56   48  52 1
            57   40  50 1 #Up
            58   49  53 1
